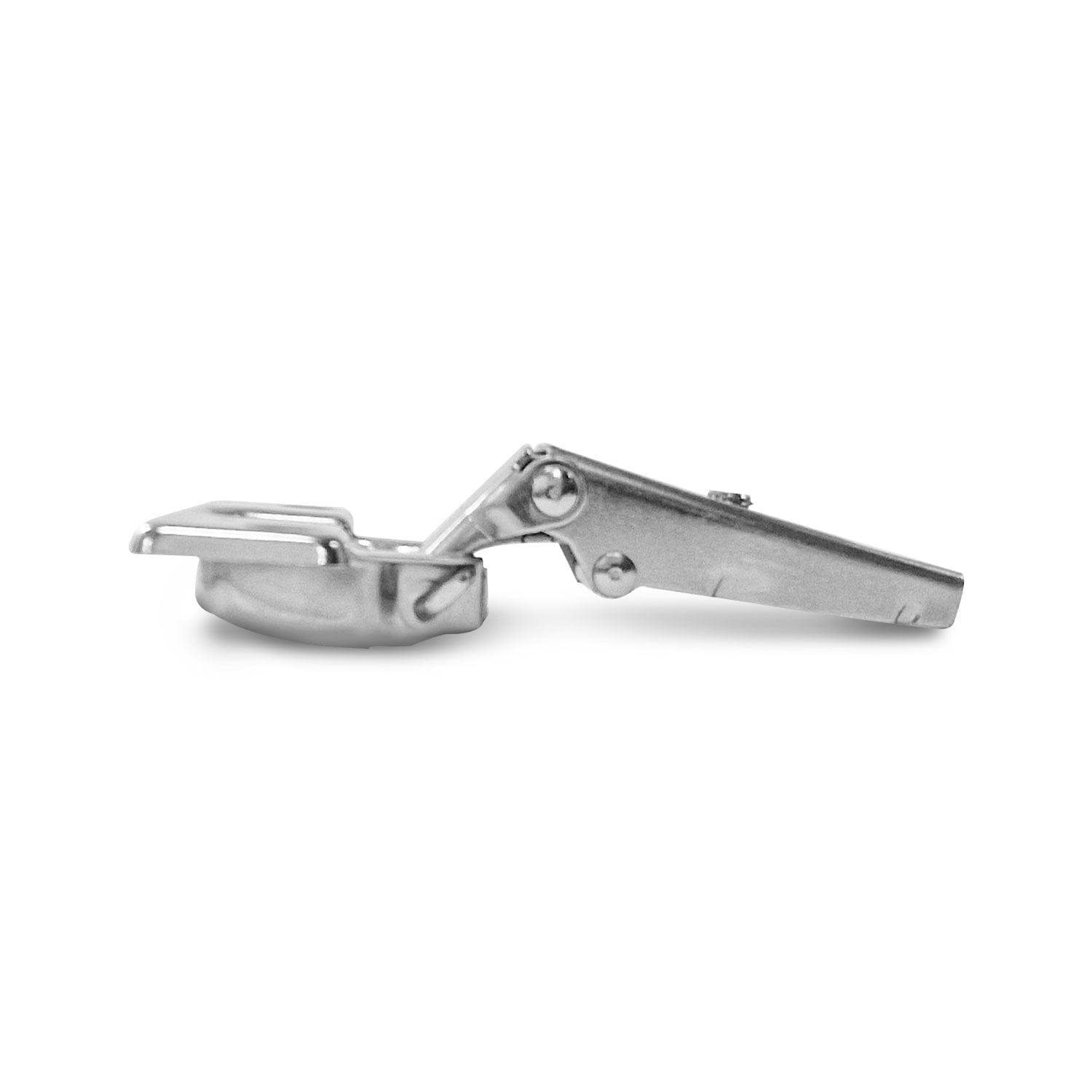

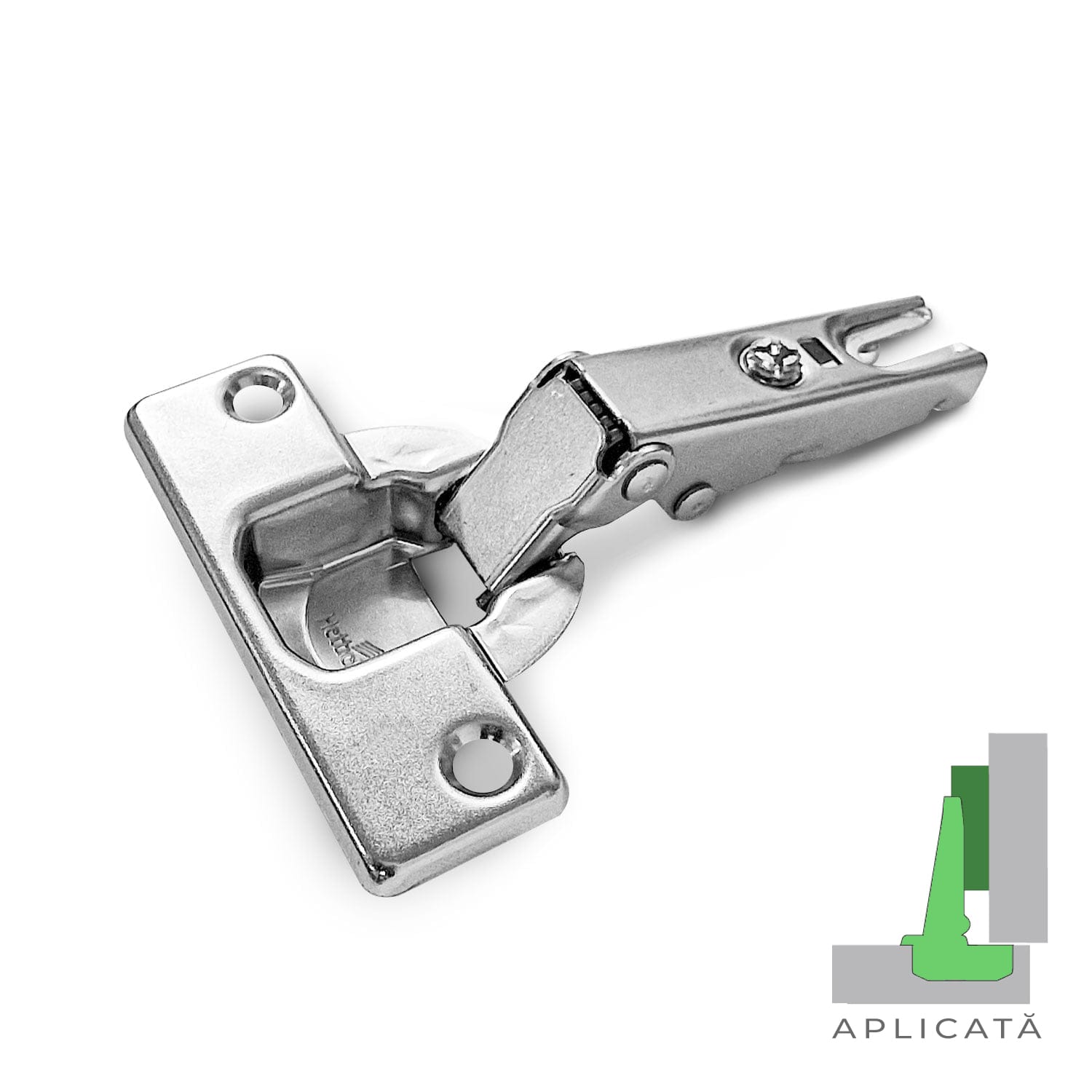

SlideOn balama 95 aplicata 1078660

SlideOn balama 95 aplicata 1078660

2,70 lei TVA inclus

Cod produs : 02-000156 Categorii : ,

DISTRIBUIE PRODUSUL

Facebook
WhatsApp

INFORMAȚII PRODUS

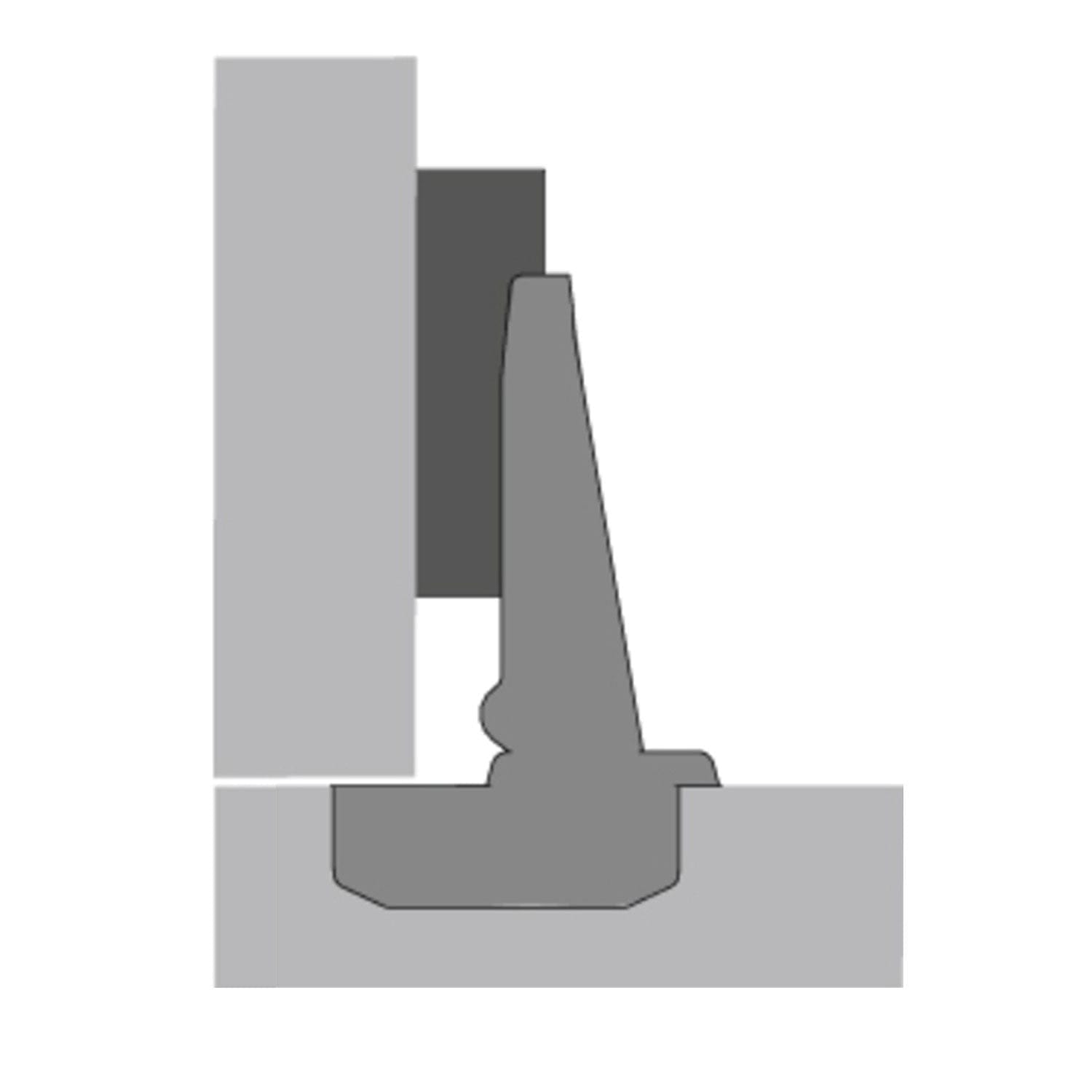

  • Tip balama: Aplicată
  • Unghi deschidere: 95 de grade
  • Concealed hinge with slide on assembly
  • Quality classification under EN 15570, Level 2
  • For door thickness of 14 – 25 mm

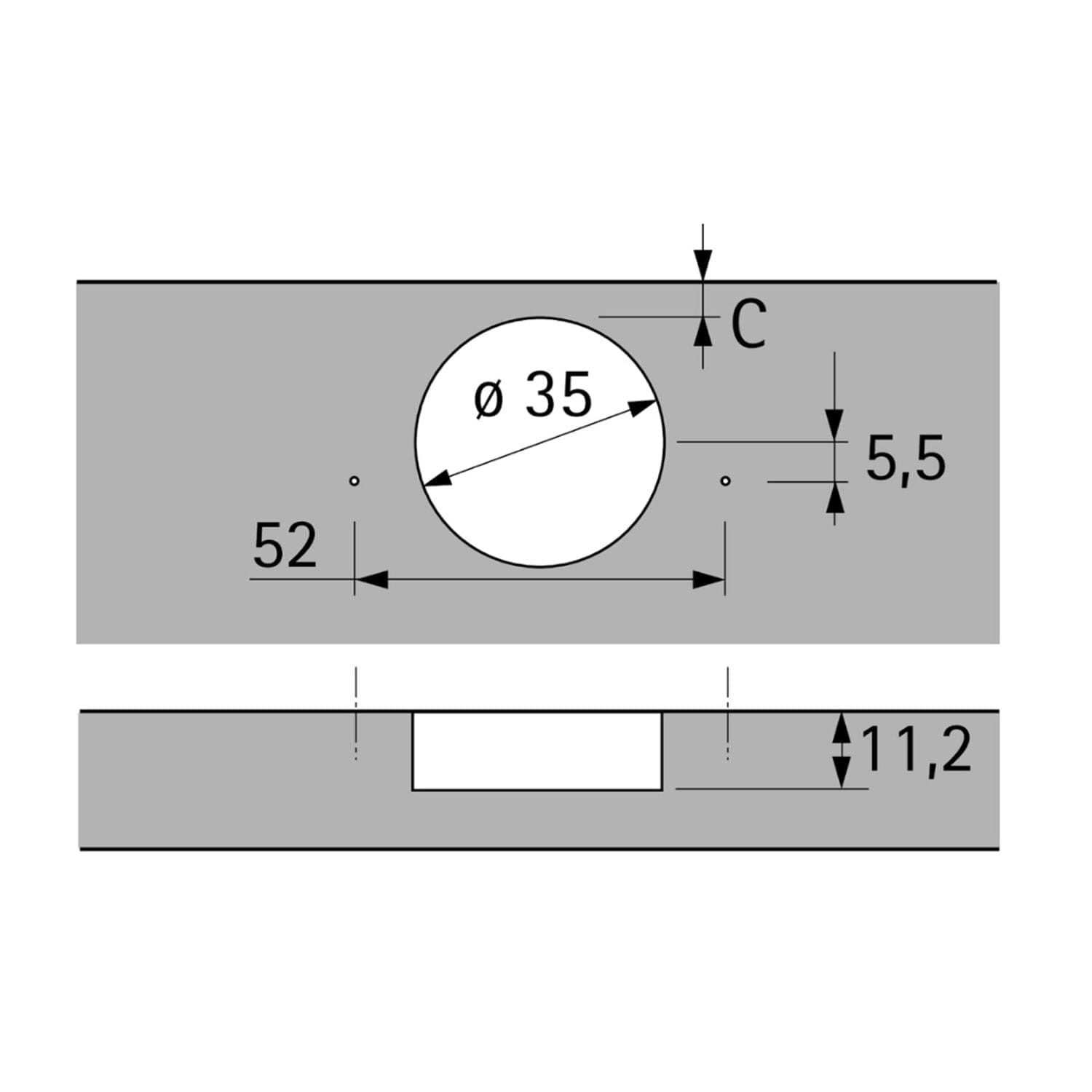

  • Cup diameter 35 mm
  • Cup depth 11.1 mm
  • Integrated + 0.5 mm / – 2.5 mm overlay adjustment
  • Integrated depth adjustment + 2 mm / – 2 mm

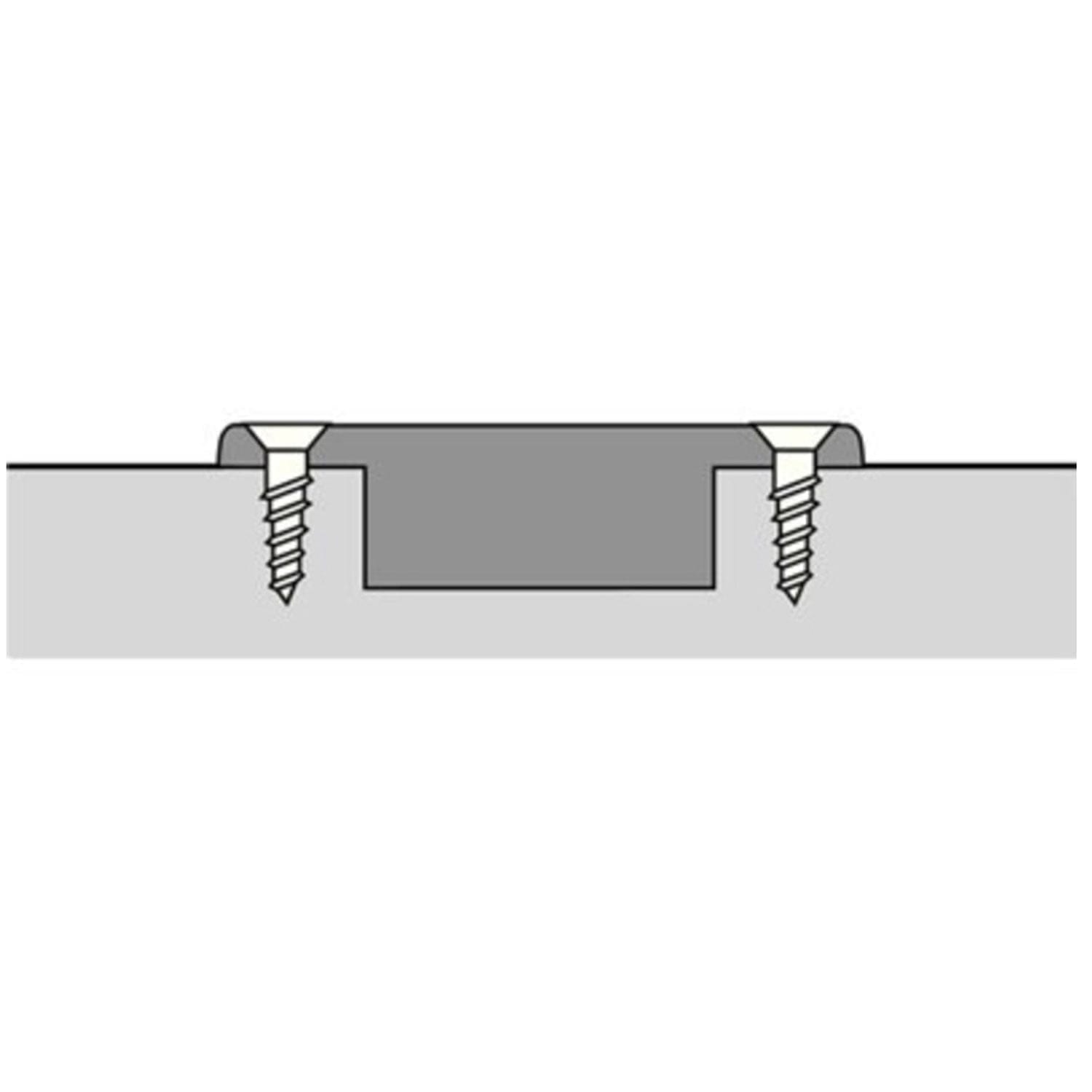

  • Height adjustment at mounting plate
  • Hinge arm material: steel, nickel plated
  • Hinge cup material: steel, nickel plated
    _



Informații suplimentare

Producator

HETTICH

Unghi Deschidere

95°

Tip Balama

Aplicată
